SPECIFICATIONS

Brand Name: NoEnName_Null

Type: DC/DC Converters

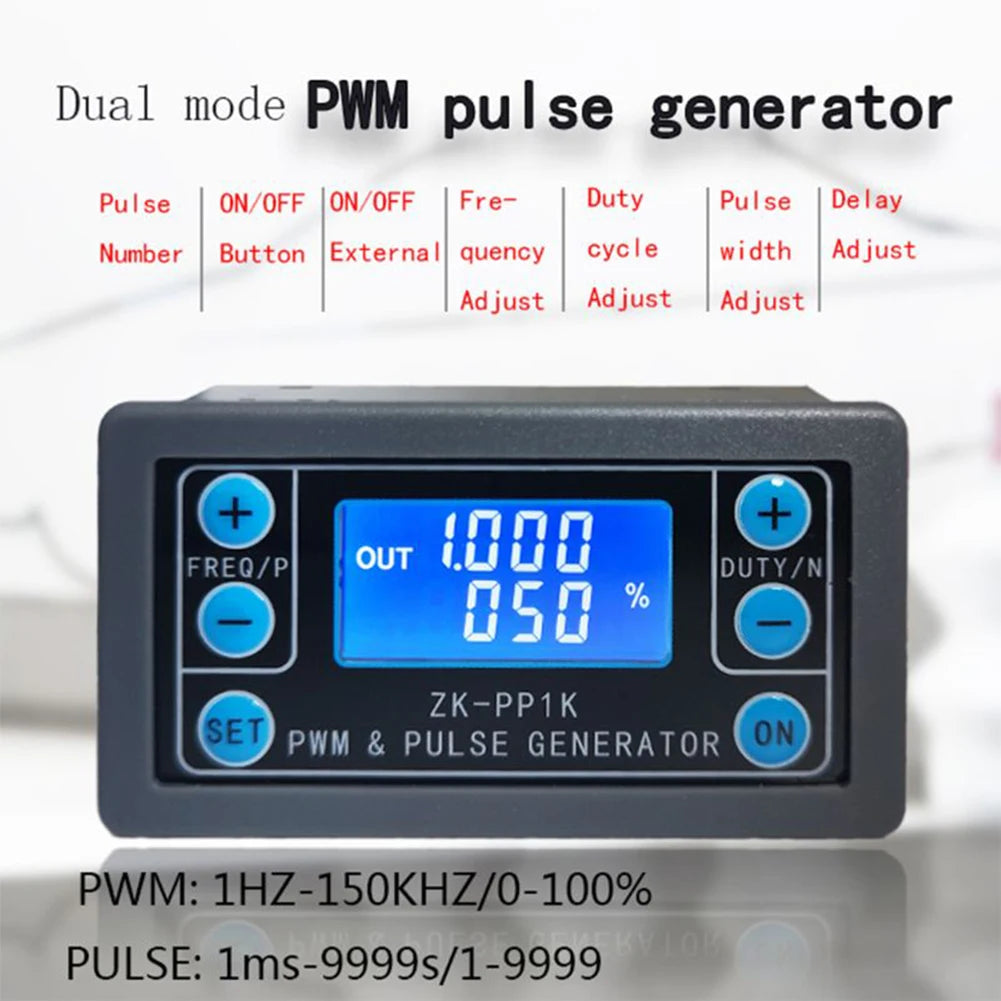

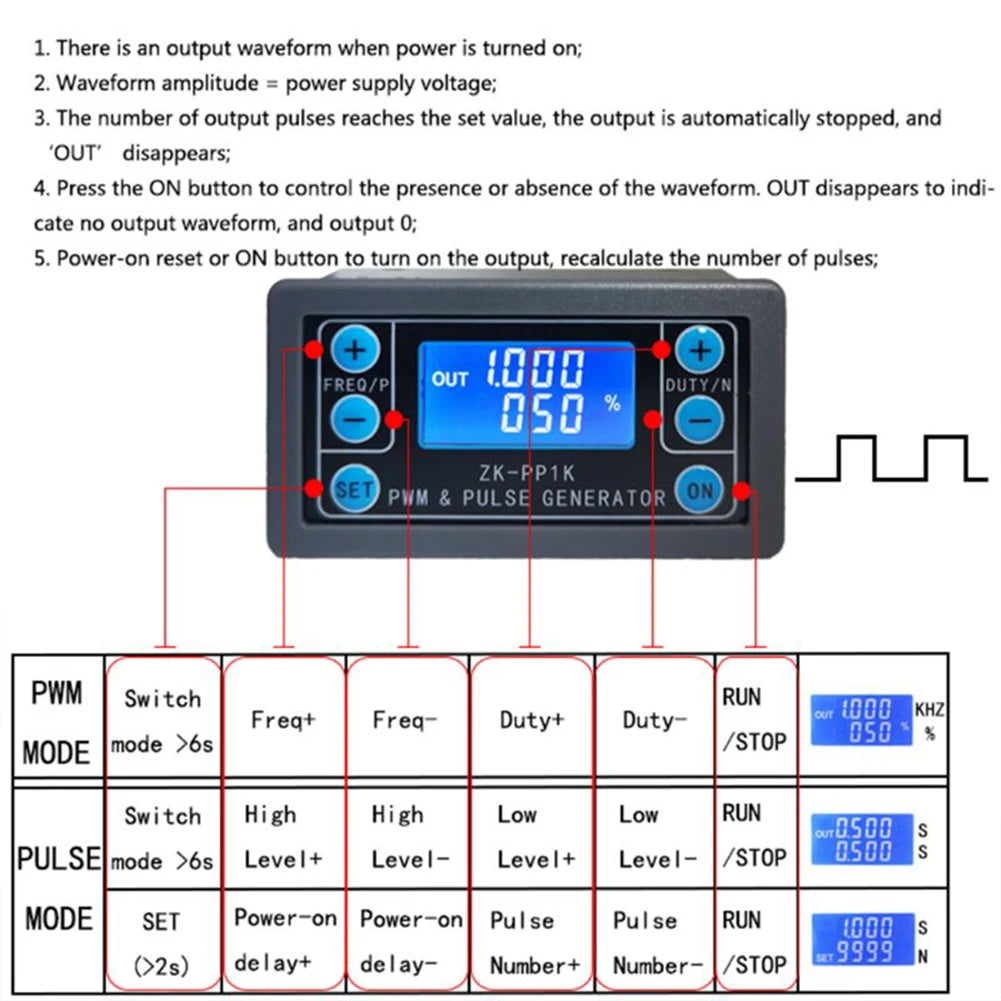

The signal generator is a device that provides electrical signals of various frequencies, square waves, pulses and output levels. It supports dual modes: PWM mode and PULSE mode. Used as a signal source or stimulus source for testing. Widely used in production practice and technology.

Description:

Name: PWM Signal Generator

Working voltage: DC 3.3V -30V

Frequency range: 1Hz~150KHz, the accuracy is about 1%

Duty cycle range: 0.00%-100%

Output current: <30mA

Number of pulses: 1~9999 or infinite

Delay output time: 0.000s~9999s, the minimum can be set to 1ms

Positive and negative pulse width: 0.000s~9999s, the minimum can be set to 1ms

Output amplitude: same as input voltage

Working temperature: -20 -85℃

Working humidity: 0% -95%RH

Packing list: 1 x PWM Signal Generator
