SPECIFICATIONS



Brand Name: xinpuguang



Certification: CE,RoHS,weee

Flexible Solar Panel: No

Foldable Solar Panel: No

Material: Monocrystalline Silicon

Max. Power: 1200W , 720W , 600W , 480W , 360W , 240W , 120W

Model Number: Solar Panel Module

Module Efficien: 24%

Nominal Capacity: 120W / 240W / 360W / 480W / 600w /720W /1200W

Number of Cells: 33 pcs

Number of Panels: >20

Rigid Solar Panel: Yes

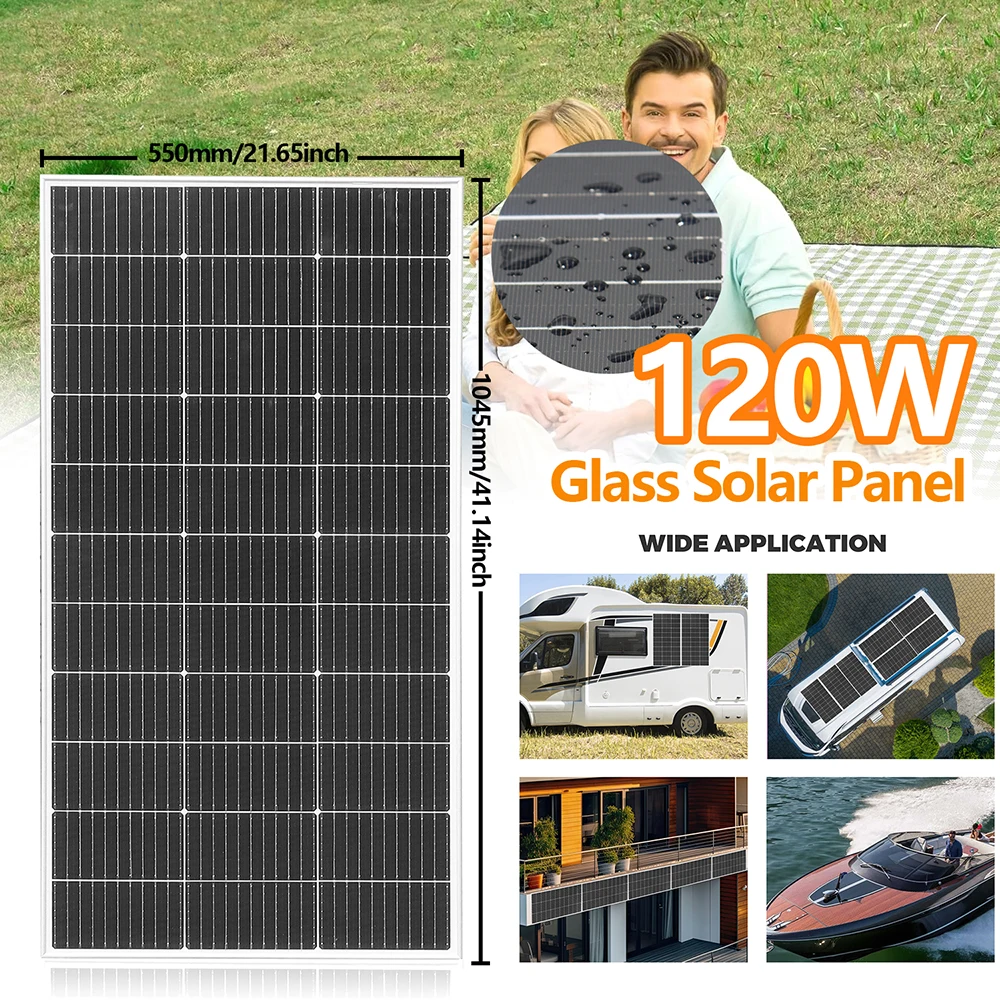

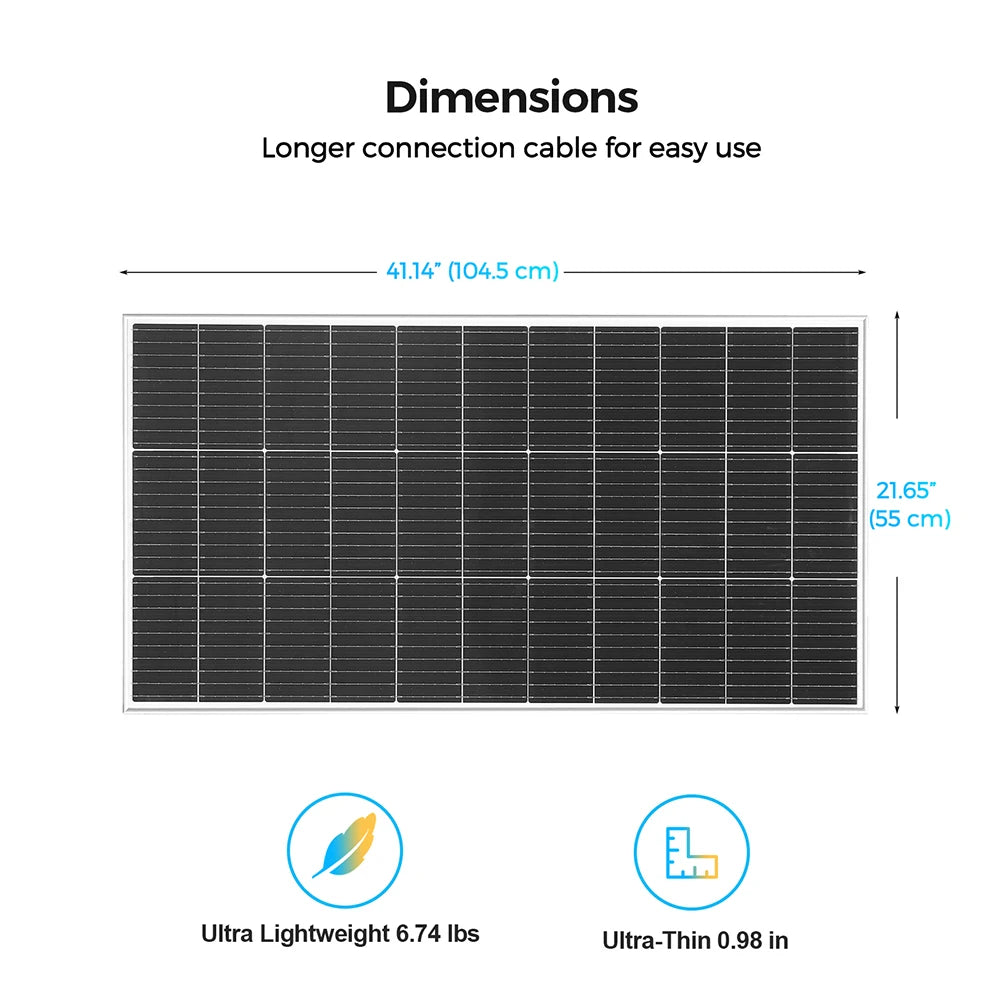

Size: 1045*550*25mm /41.14 in *21.65 in *0.98 in

Type: Solar Panel

is_customized: Yes



XINPUGUANG Rigid Solar Panel Modules Glass Solar Panels Battery charger1200W 720W 600W 480W 360W 240W 120W Photovoltaic Module 18V Monocrystalline Solar Panels Battery Charger

This link has 1pcs- 10 pcs 120W solar panel modules or solar panel kits in different quantities. When buyers place an order, please pay attention to choose the solar panel cabinet you need fast.

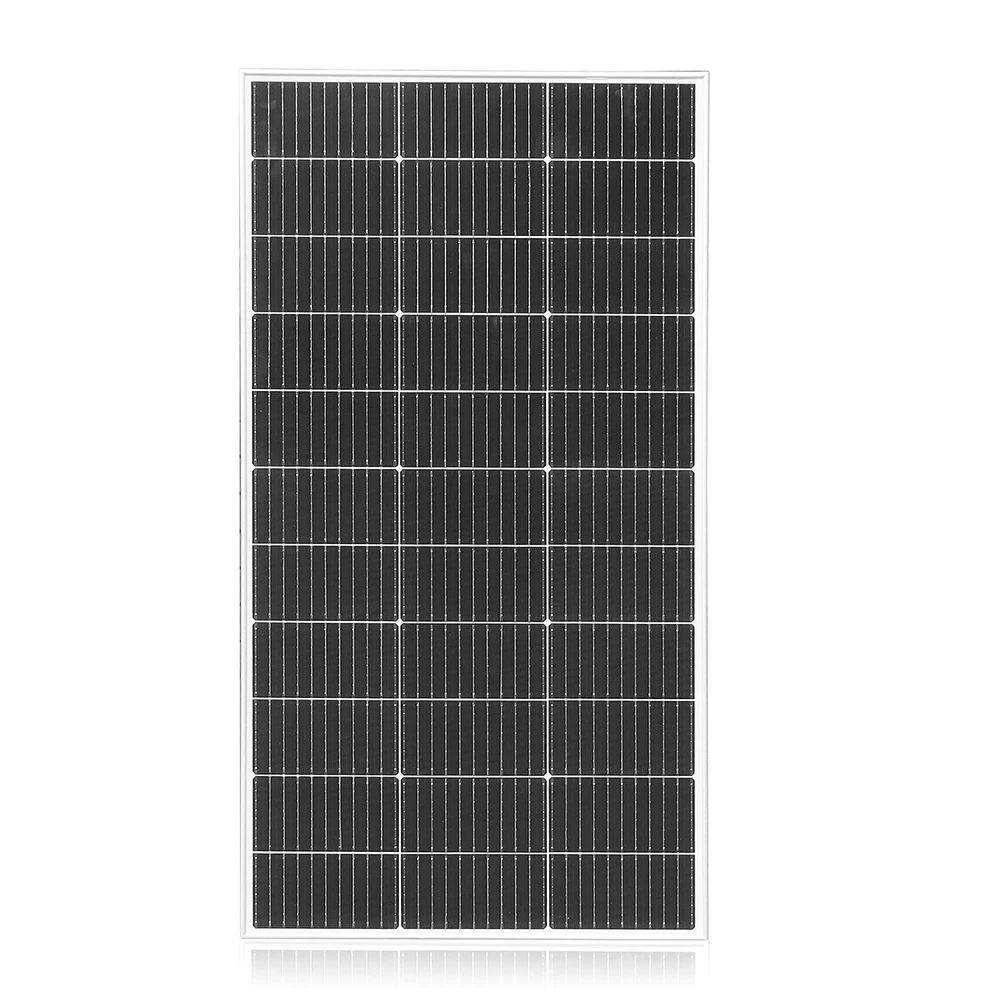

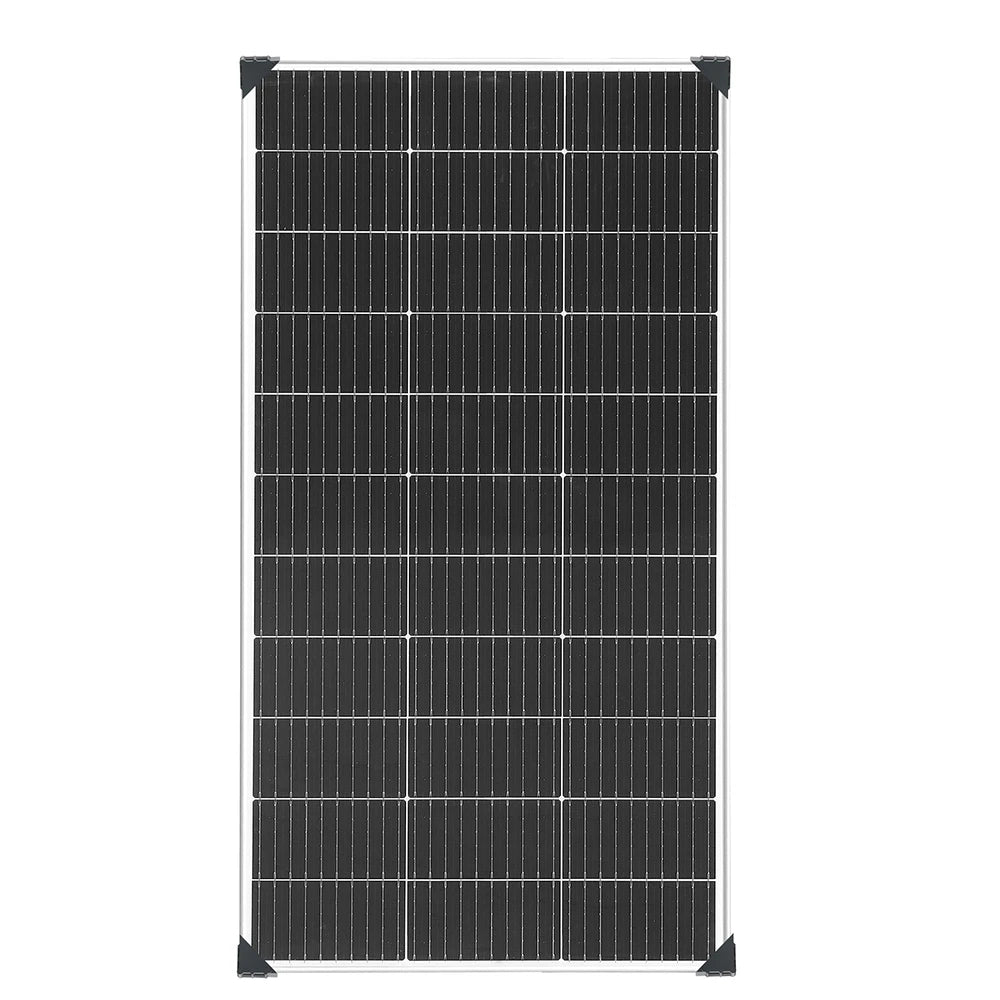

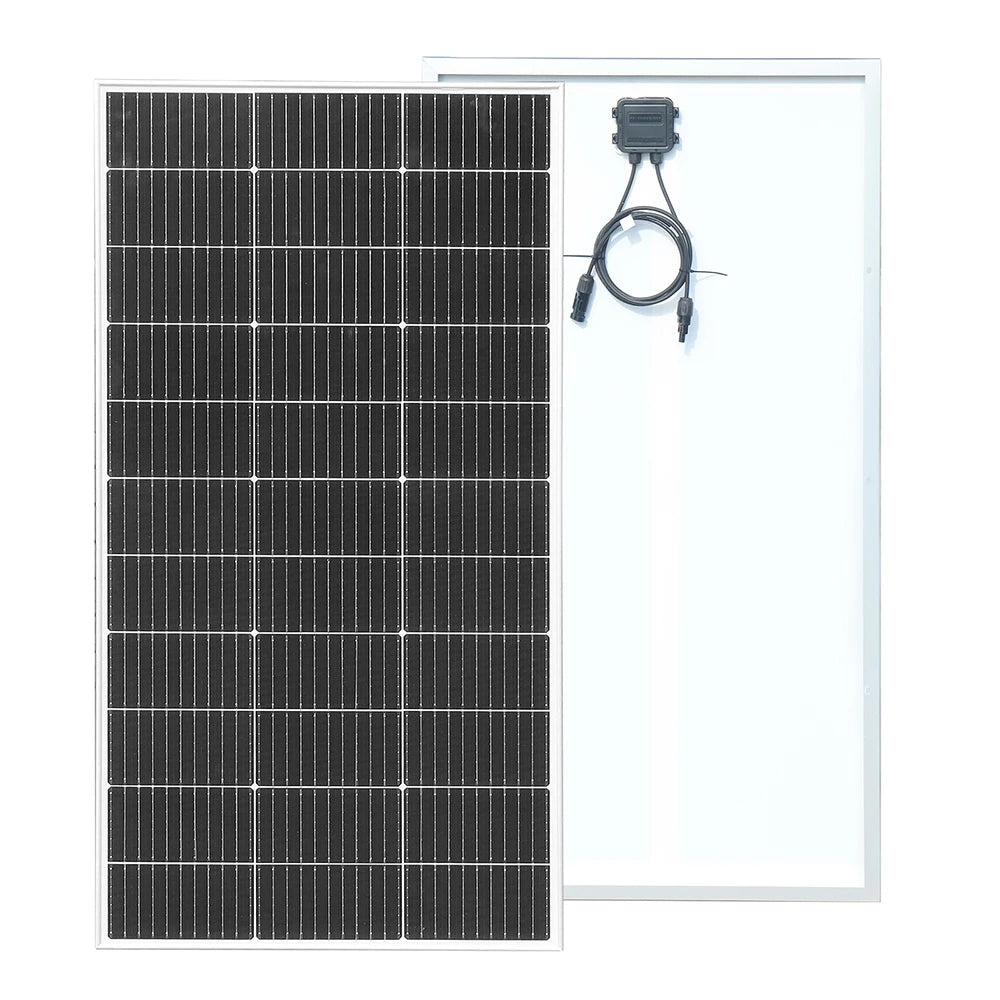

120W Rigid Solar Panel Specification

Maximum power(Pmax) 120W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.78V

Maximum power voltage(Vmp) 18.15V

Short circuit current(Isc) 6.8 A

Maximum power current(Imp) 6.5A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 6.62Kg

Size 1045*550*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5


(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error)

Note:

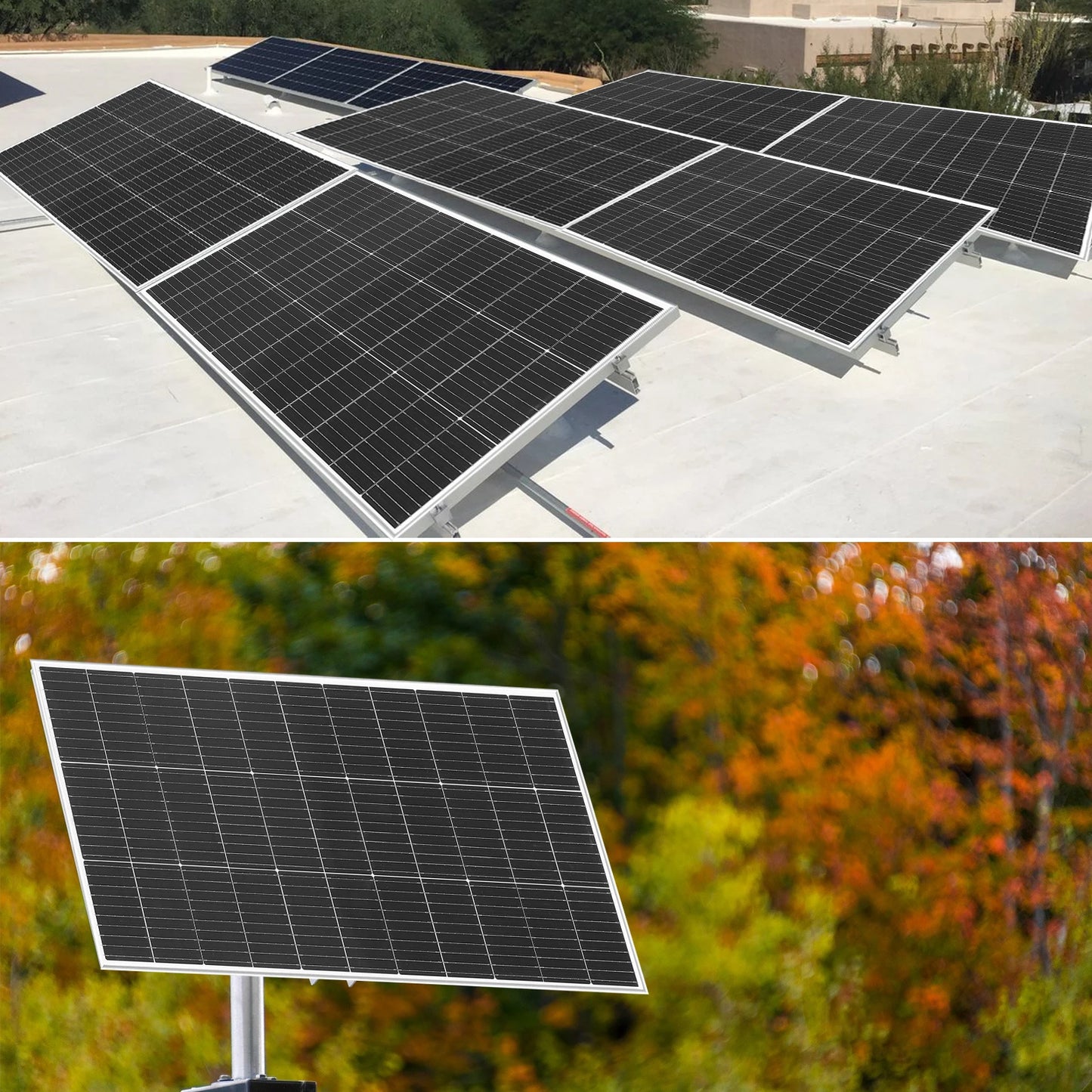

Solar panels need to be installed in the sun, solar panels have no power output at night or on cloudy or rainy days, so solar panels are usually used with batteries.

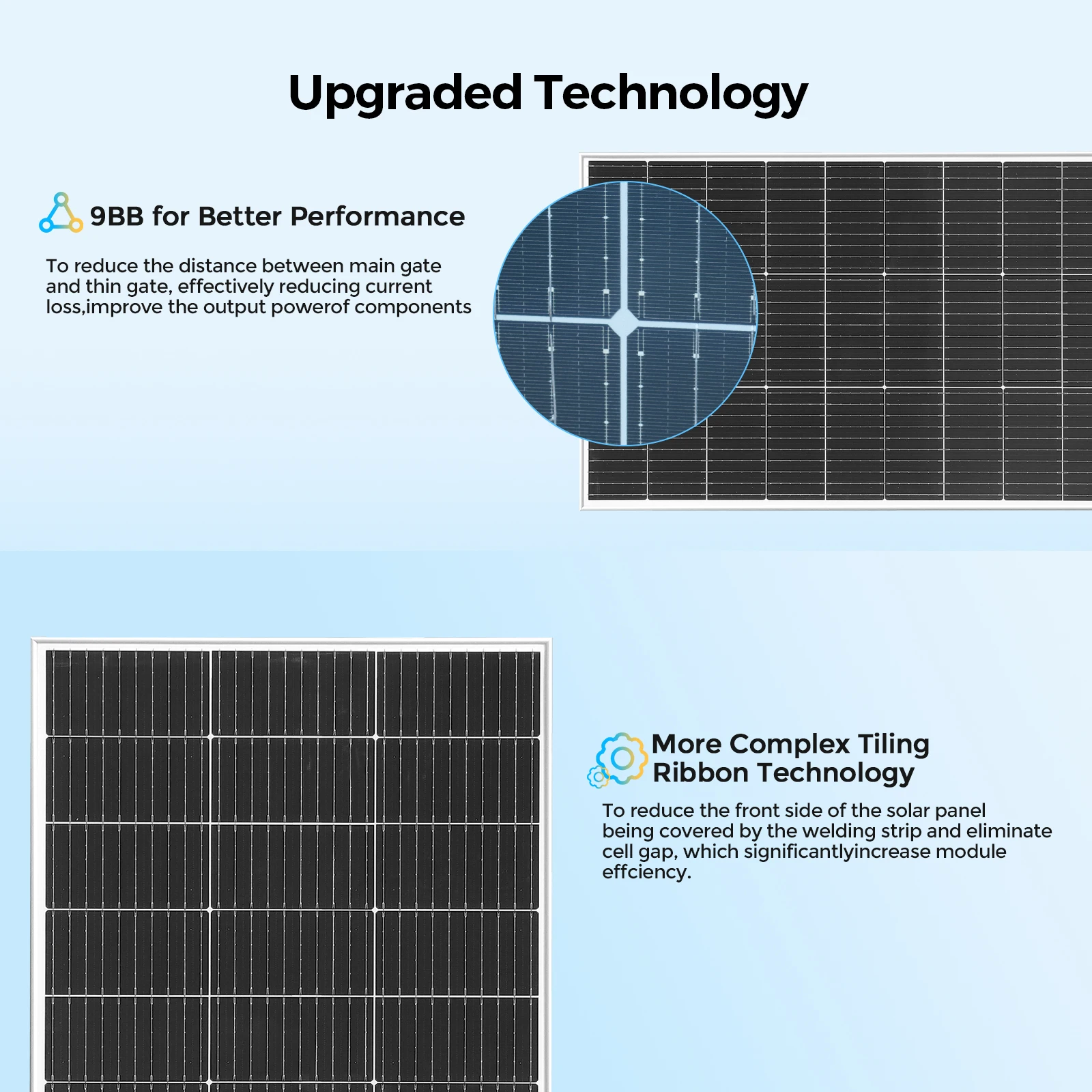

[High Efficiency N-Type Solar Cell] 120w solar panel features advanced N-type technology and 9 busbars (BB) design. This solar panels can maximize energy conversion rate, which is as high as 24%.

Package list 1 :1PCS 120W (120W)

1X120w soalr panel

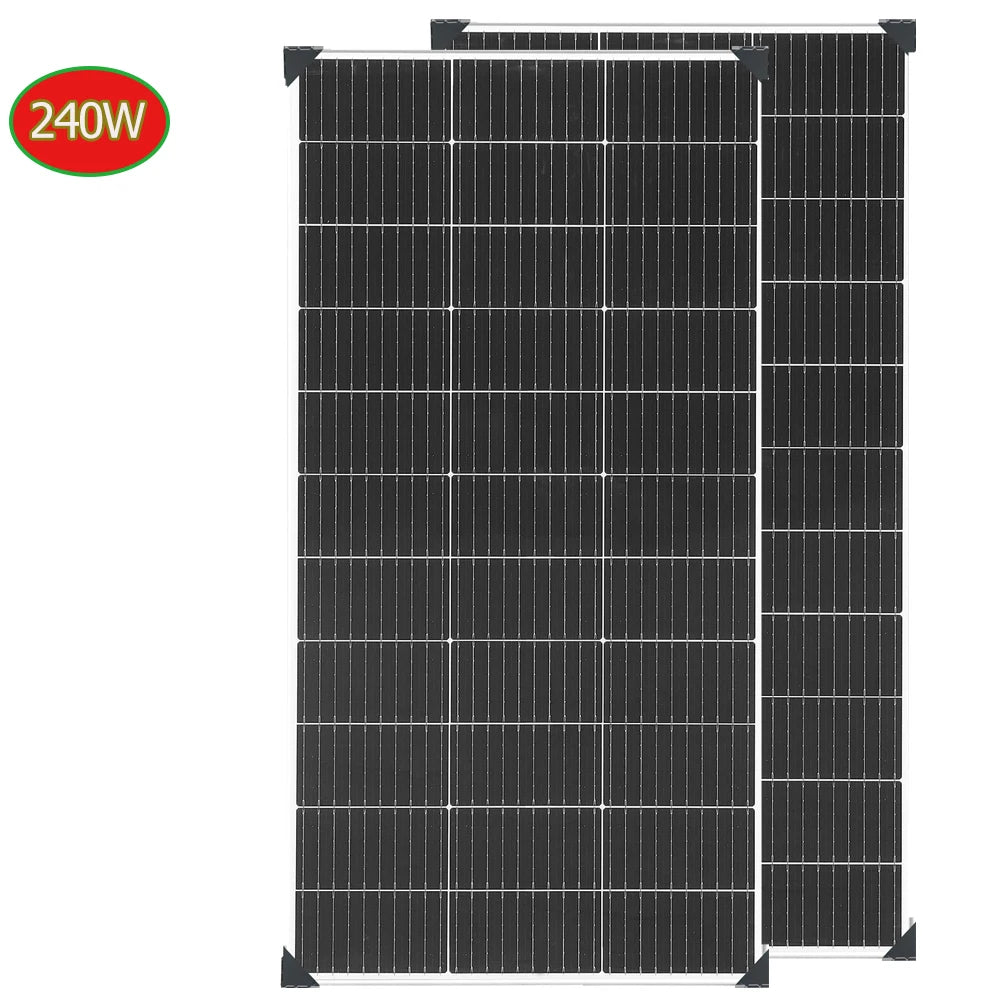

Package list 1 :2PCS 120W (240W)

2X120w soalr panel

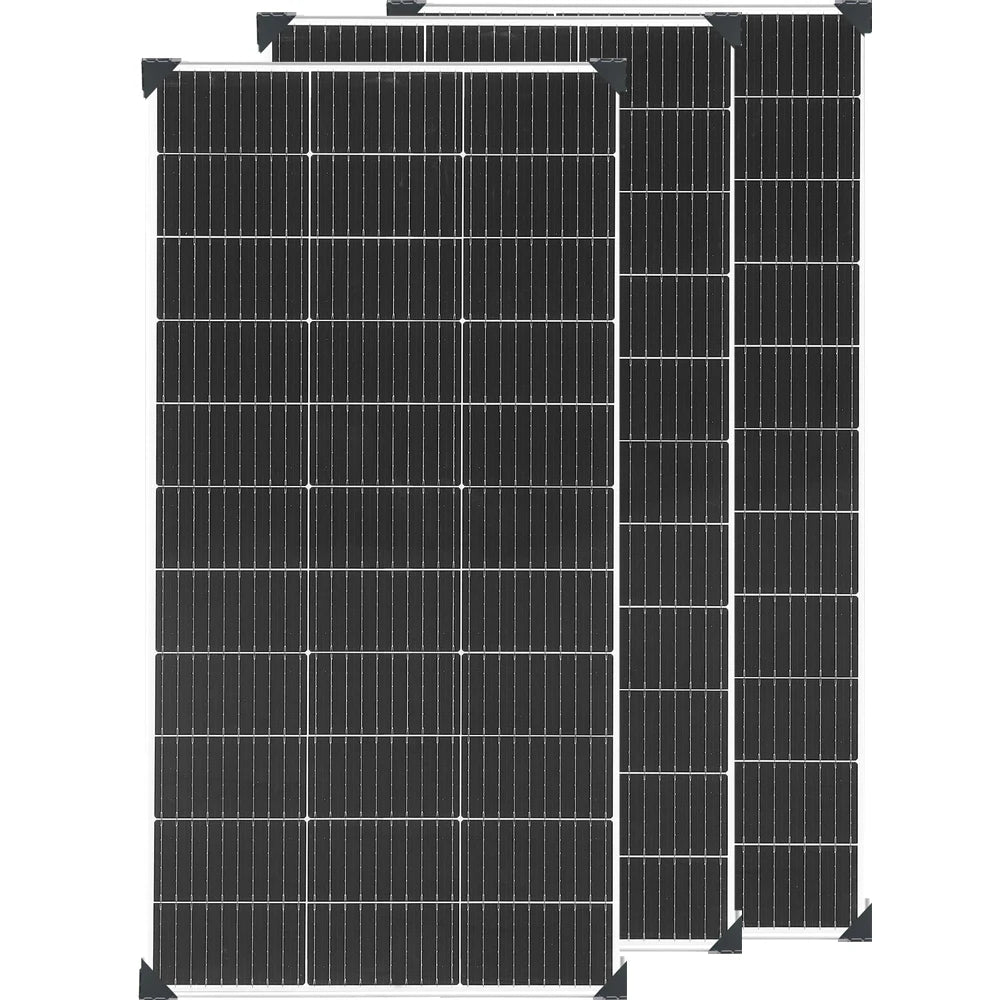

Package list 1 :3PCS 120W (360W)

3X120w soalr panel

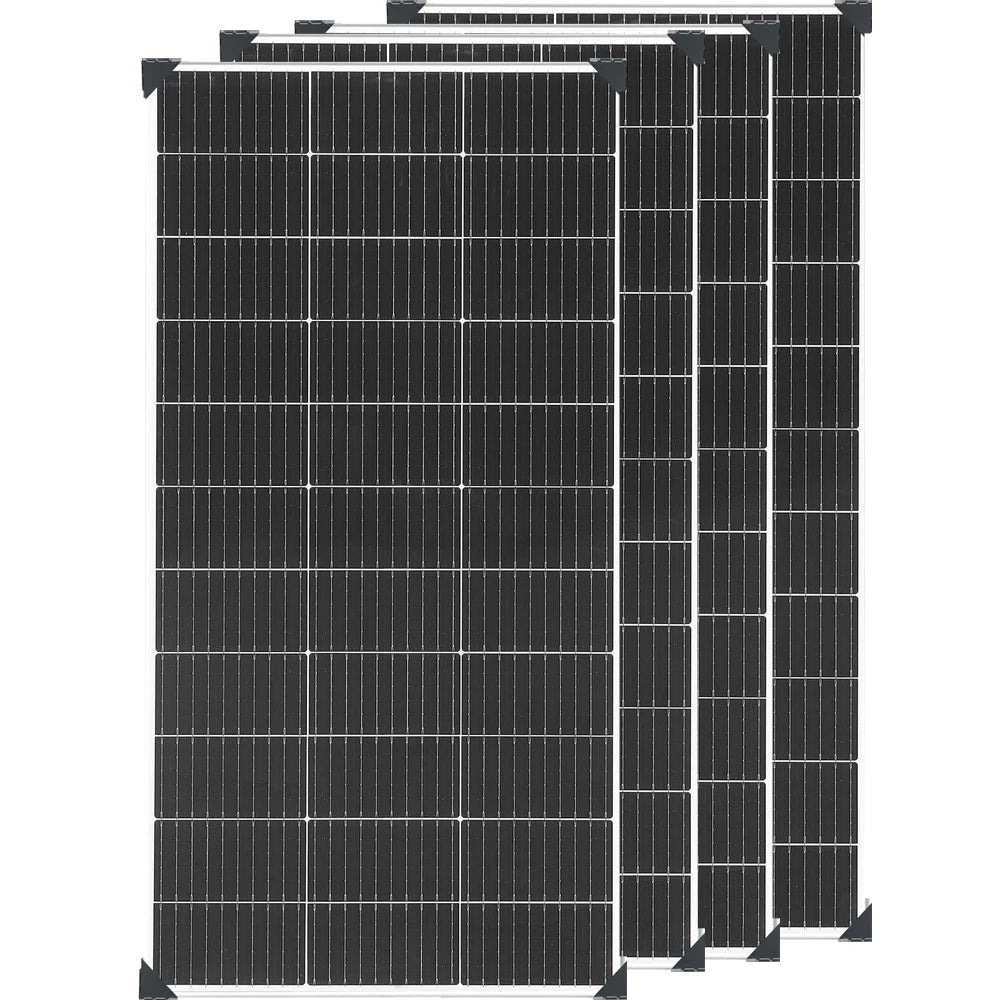

Package list 1 :4PCS 120W (480W)

4X120w soalr panel

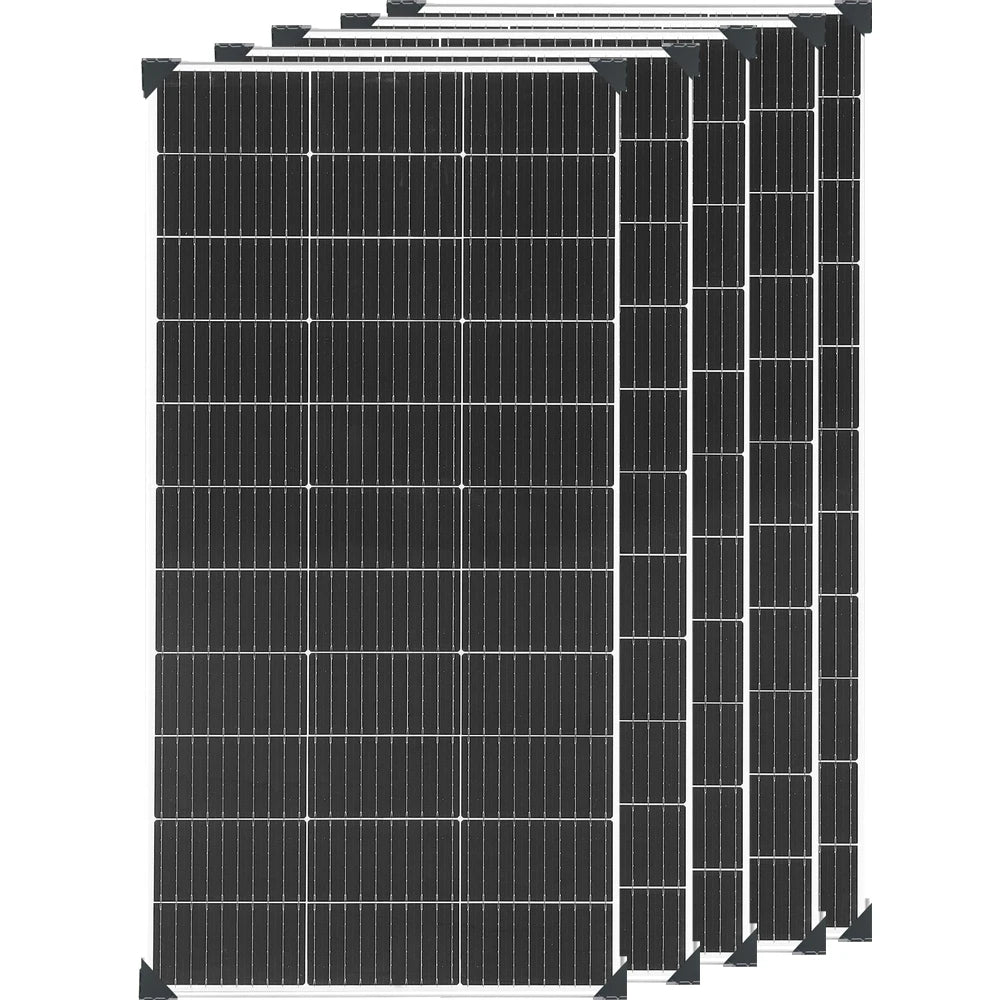

Package list 1 :5PCS 120W (600W)

5X120w soalr panel

Package list 1 :5PCS 120W (600W)

5X120w soalr panel

Package list 1 :6PCS 120W (720W)

6X120w soalr panel

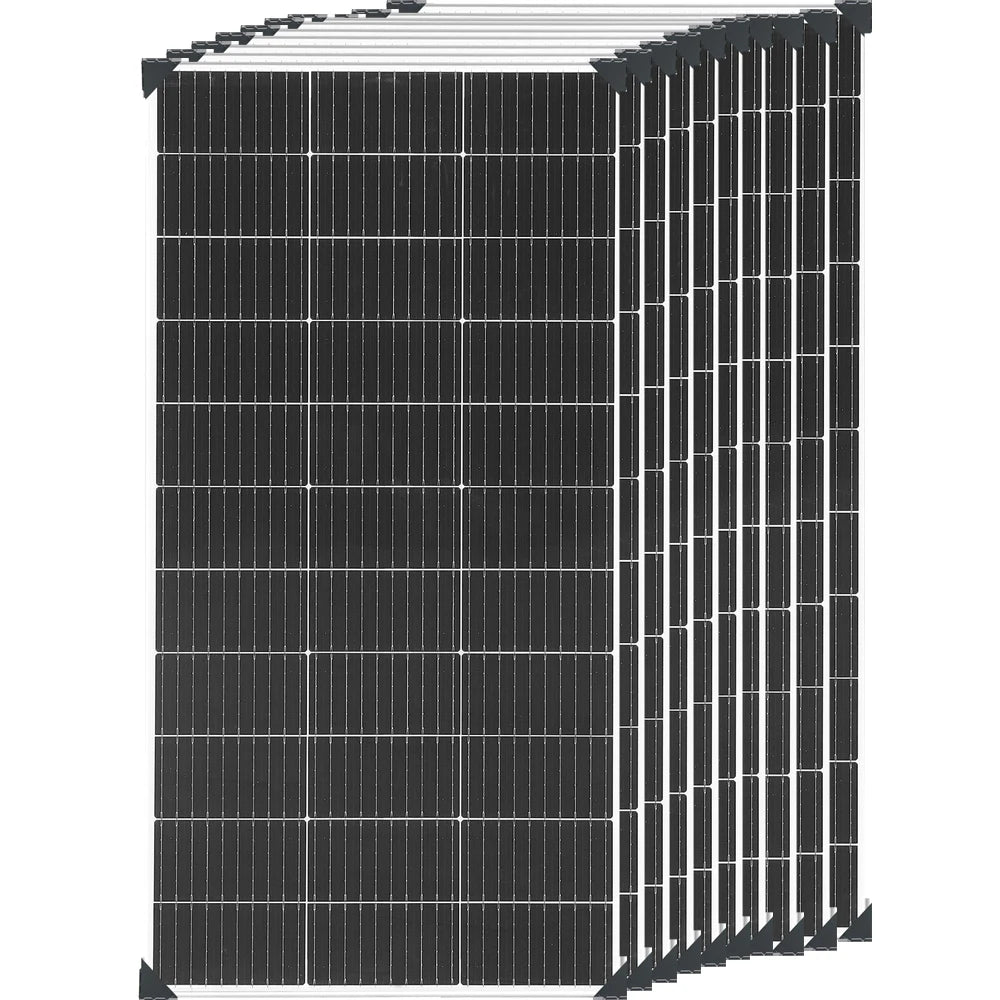

Package list 1 :10PCS 120W (1200W)

10X120w soalr panel

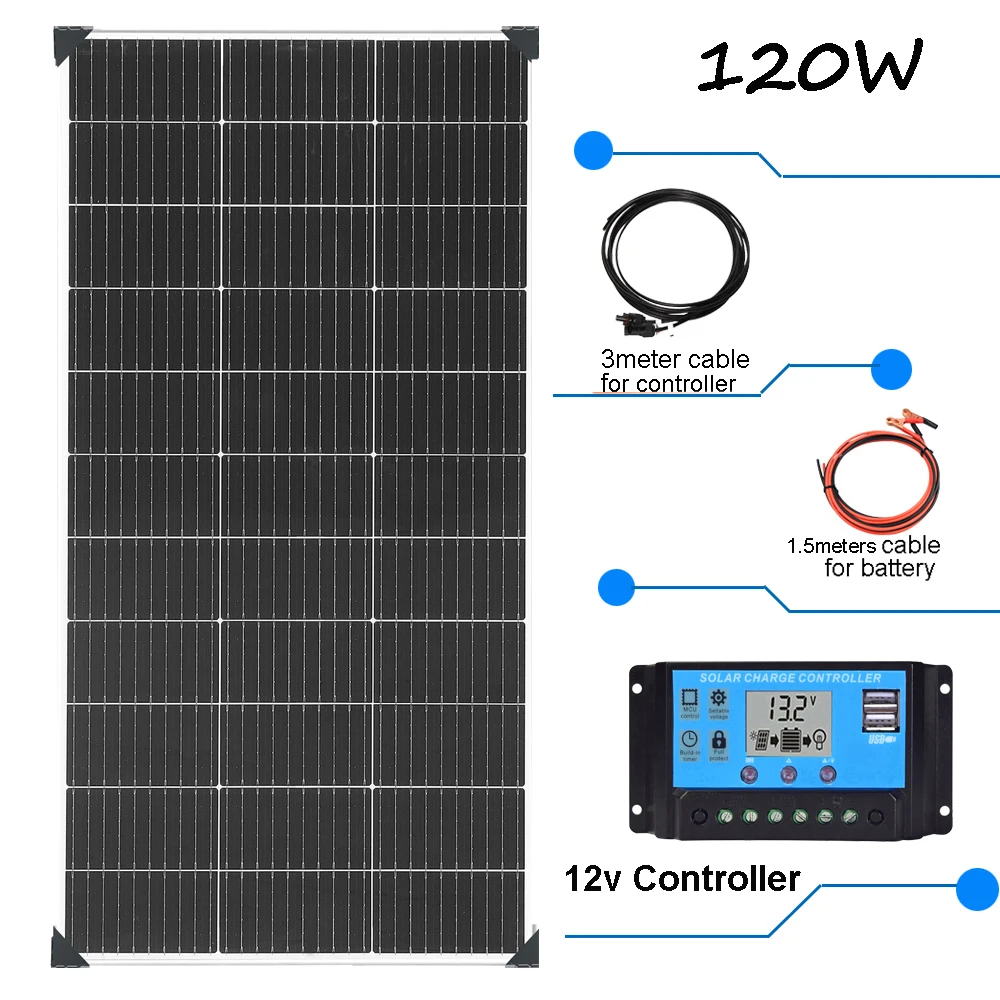

12V 120W solar panel kit Components Includes:

1. 1x 120W high efficiency solar panel
2. 1x 10A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable

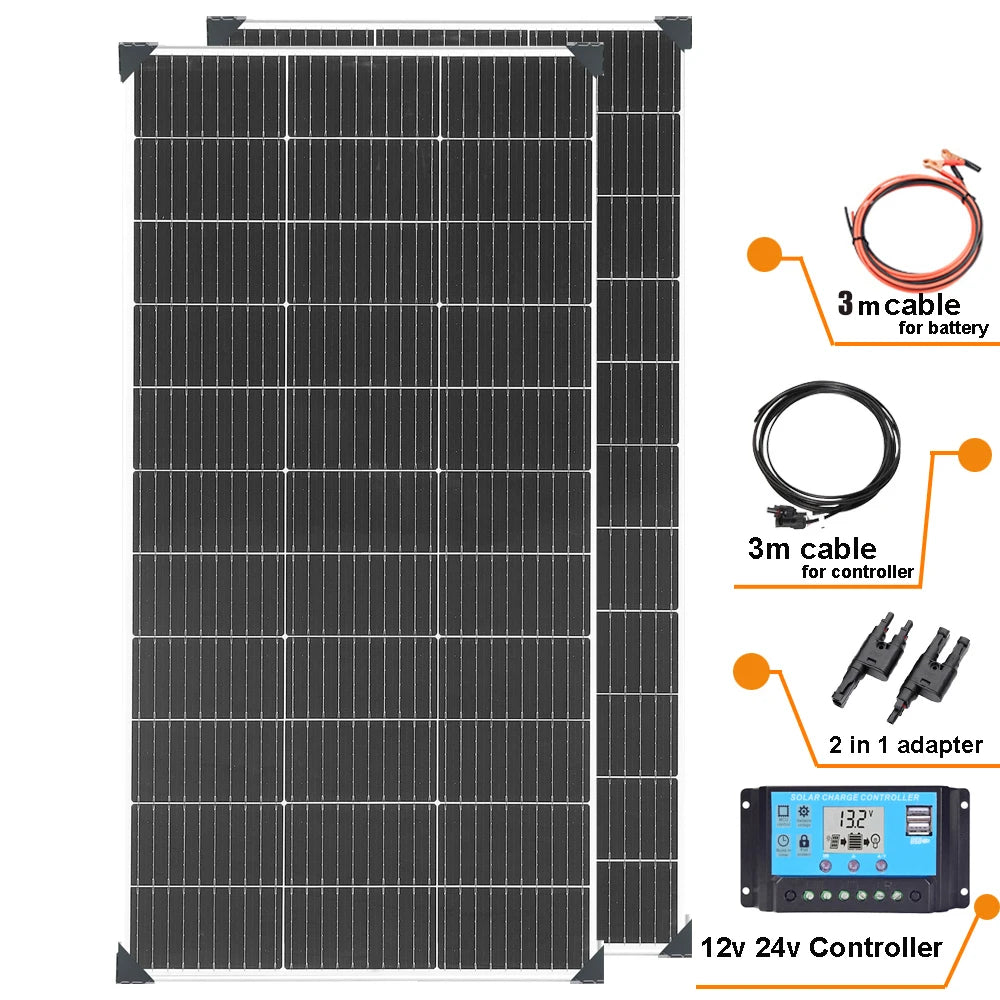

240W solar panel kit Components Includes:

1. 2x 120W high efficiency Solar panel
2. 1x 20A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 2 in 1 adaptors

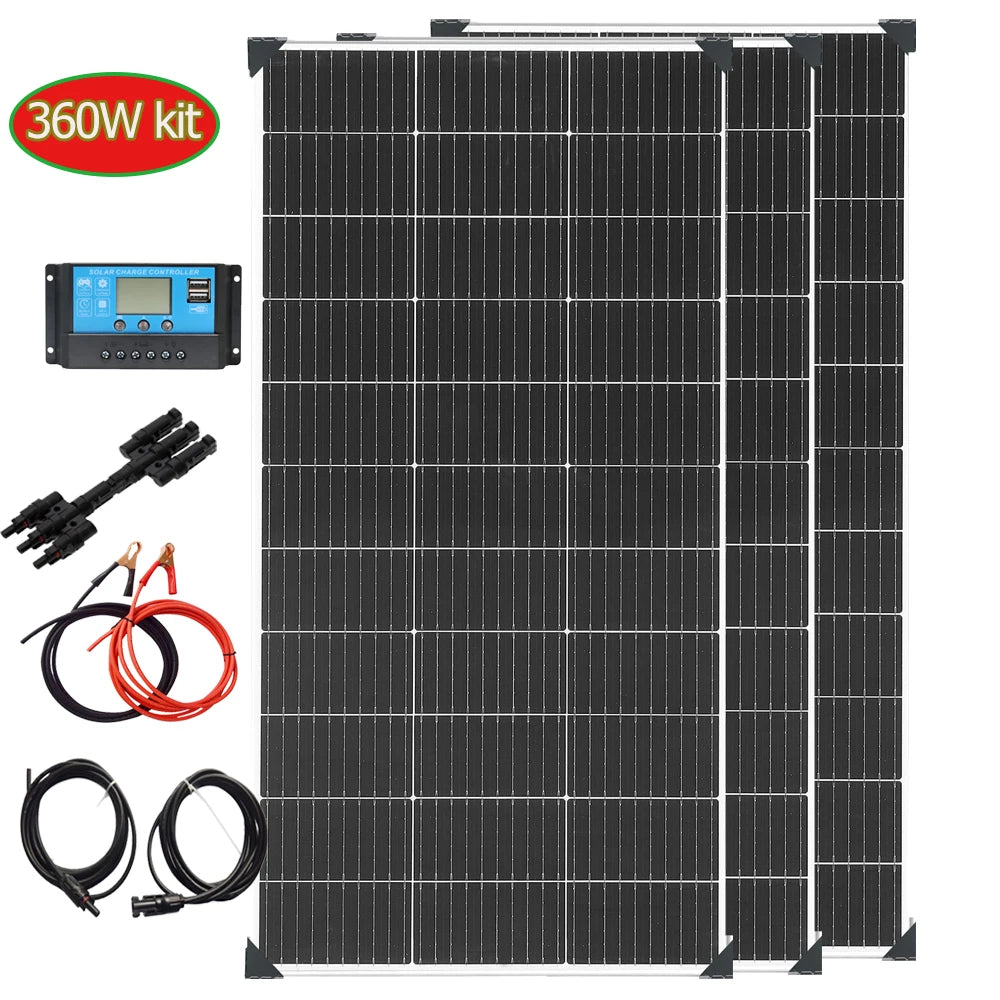

360W solar panel kit Components Includes:

1. 3x 120W high efficiency Solar panel
2. 1x 30A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 3 in 1 adaptors

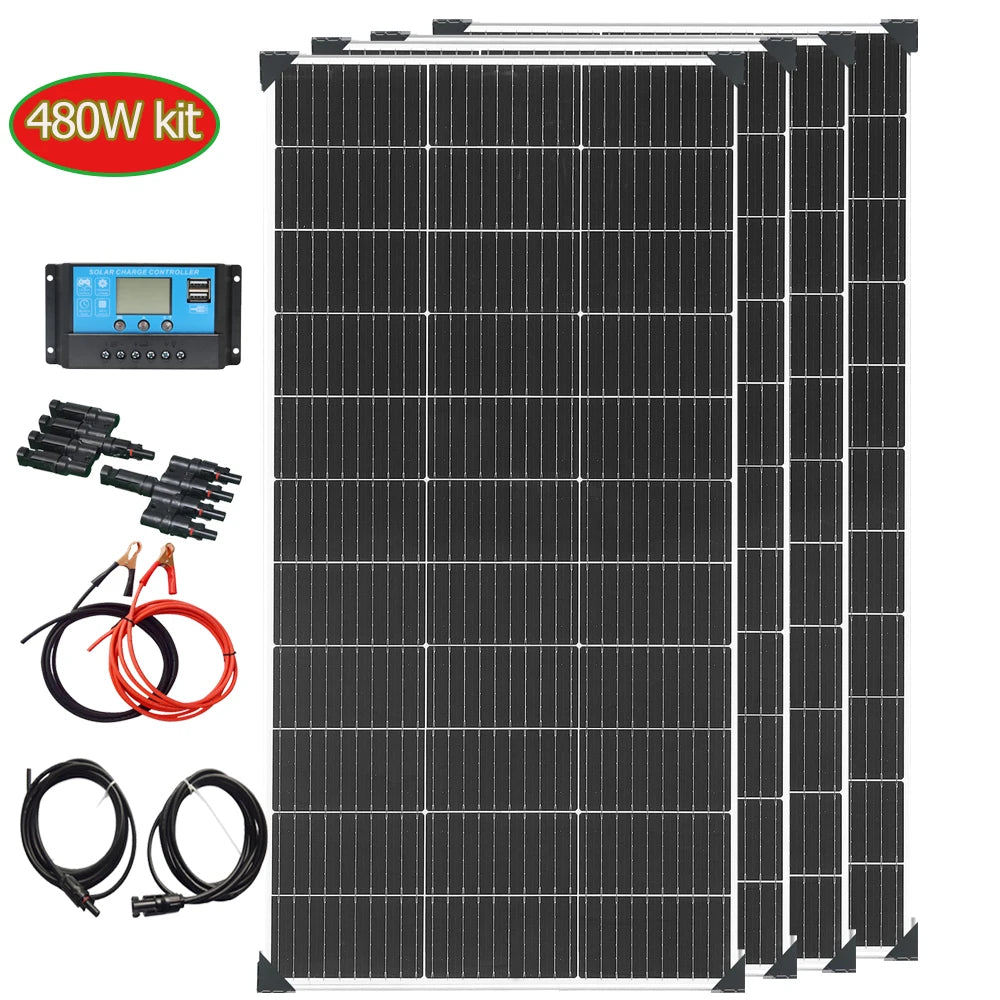

480W solar panel kit Components Includes:

1. 4x 120W high efficiency Solar panel
2. 1x 40A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 4 in 1 adaptors

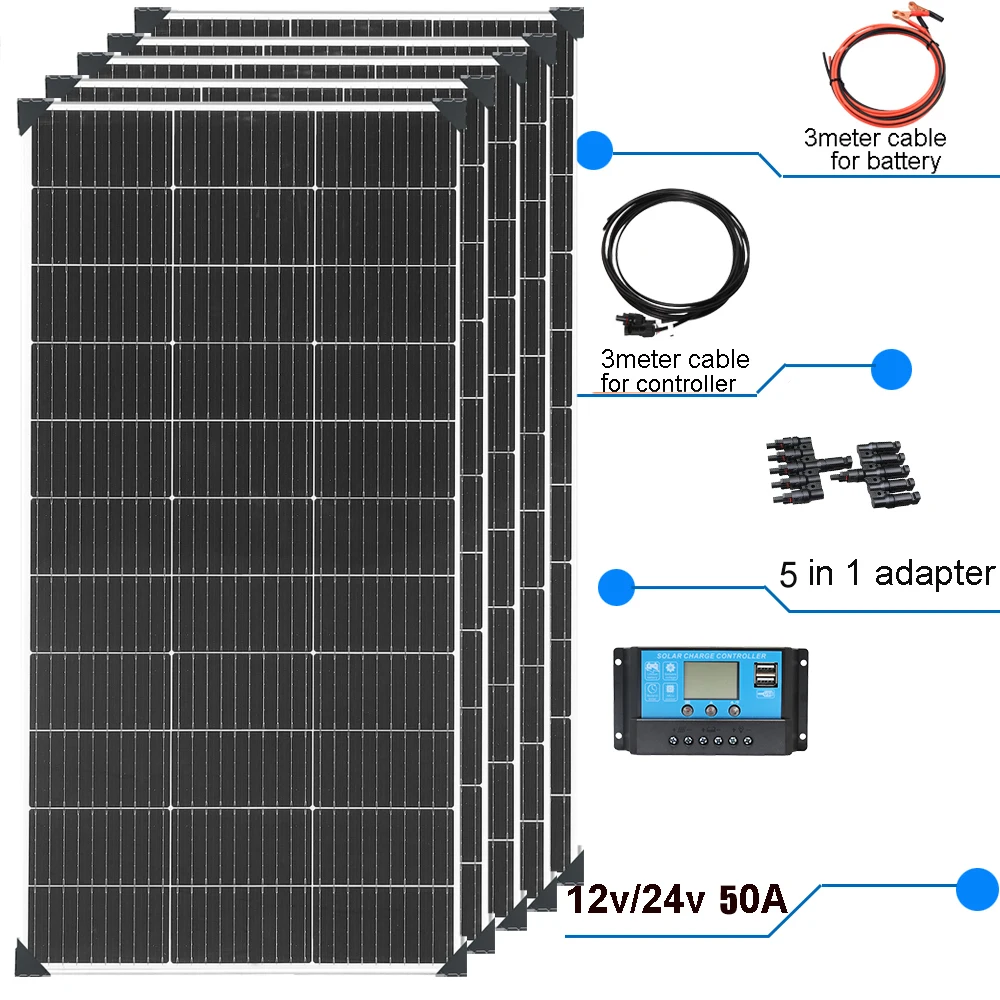

600W solar panel kit Components Includes:

1. 5x 120W high efficiency Solar panel
2. 1x 50A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 5 in 1 adaptors
